Standard Smooth Face Block (CMU):
Image |
Product Number |
Description |
Color |
Size [WxHxL] |
Weight |
No./Pallet |
 |

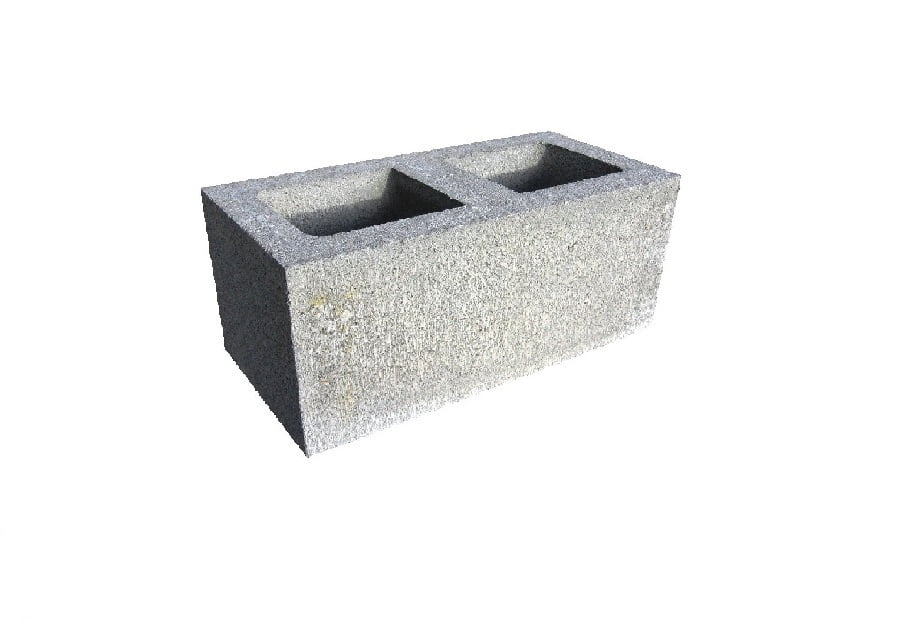

08 STDN GR |
Standard |
Gray |
8″ x 8″ x 16″ |
37 lbs |
75 |
 |

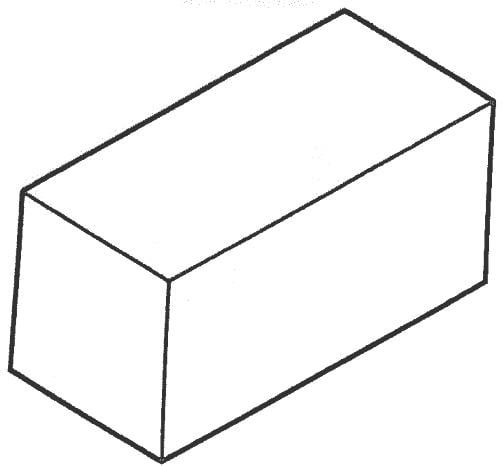

08 SLDN GR |
Solid |
Gray |
8″ x 8″ x 16″ |
78 lbs |
75 |
 |

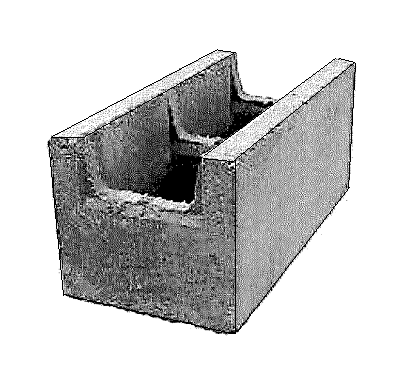

08 BBMN GR |
Bond Beam |
Gray |
8″ x 8″ x 16″ |
36 lbs |
75 |
 |

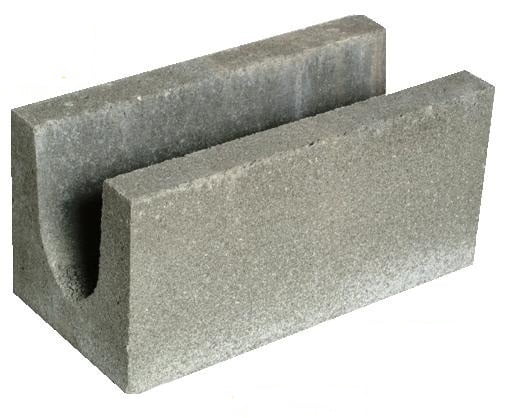

08 SBBN GR |
Bond Beam, Solid Bottom |
Gray |
8″ x 8″ x 16″ |
43 lbs |
75 |

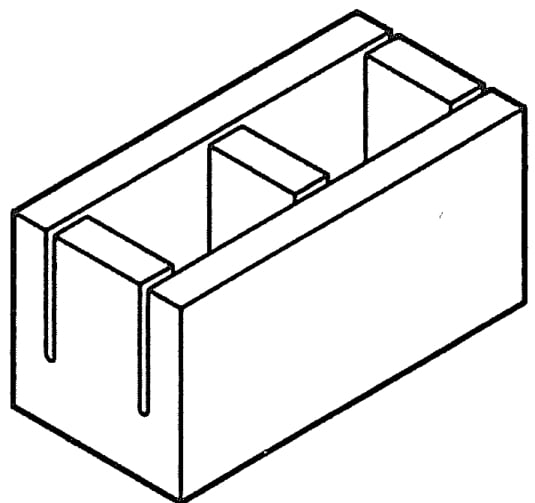

![Block 8", Bond Beam, with Knock-Outs [Drawing]](https://www.anchsand.com/wp-content/uploads/2018/07/Com8BondBeamKODraw-150x141.jpg) |
08 BKON GR |
Bond Beam, with Knock-Outs |
Gray |
8″ x 8″ x 16″ |
42 lbs |
75 |
 |

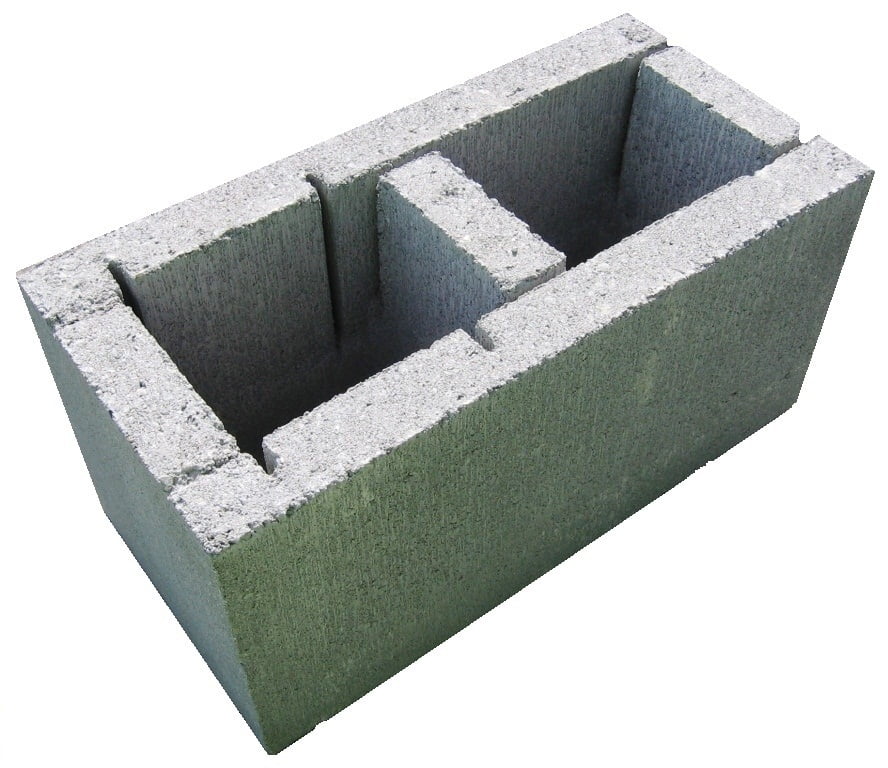

08 BBCN GR |
Bond Beam Corner |
Gray |
8″ x 8″ x 16″ |
41 lbs |
75 |
 |

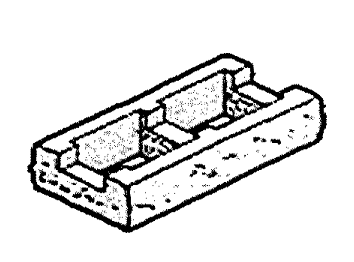

08 HHBN GR |
Bond Beam, Half-High |
Gray |
8″ x 4″ x 16″ |
20 lbs |
150 |
 |

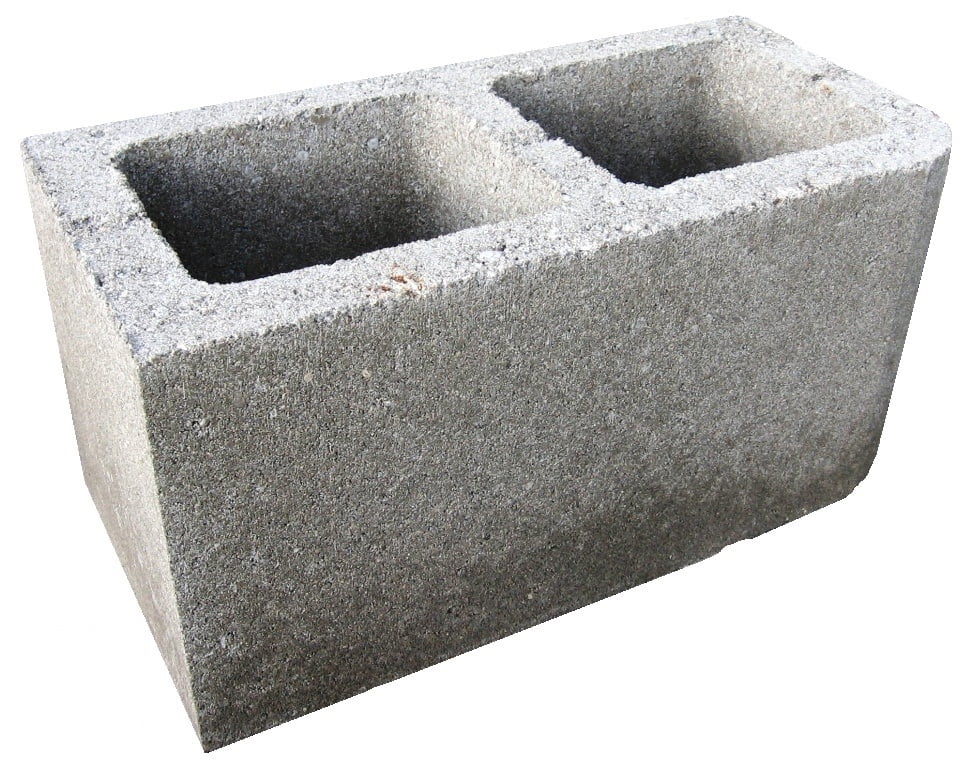

08 SBNN GR |
Single Bullnose |
Gray |
8″ x 8″ x 16″ |
41 lbs |
75 |
![Block 8", Single Bullnose, Half Block [Drawing]](https://www.anchsand.com/wp-content/uploads/2018/07/Com8SingleBullHalfdraw-128x150.jpg) |

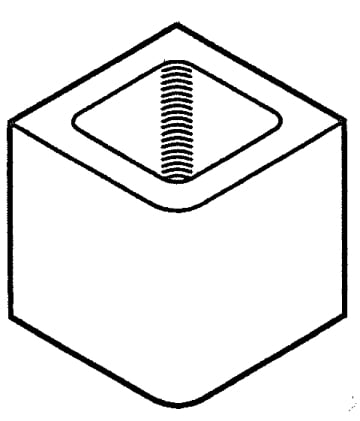

08 HSBN GR |
Single Bullnose, Half |
Gray |
8″ x 8″ x 8″ |
23 lbs |
150 |
 |

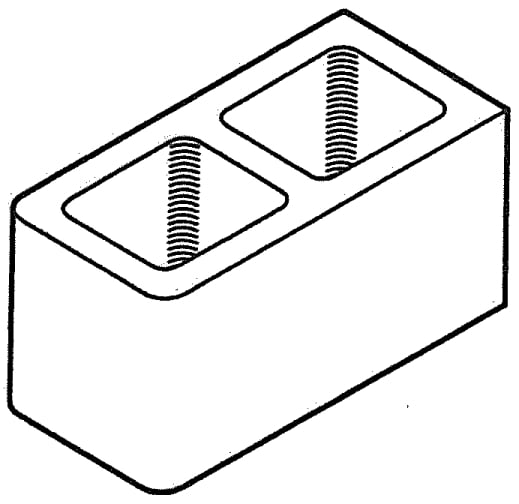

08 DBNN GR |
Double Bullnose |
Gray |
8″ x 8″ x 16″ |
42 lbs |
75 |
 |

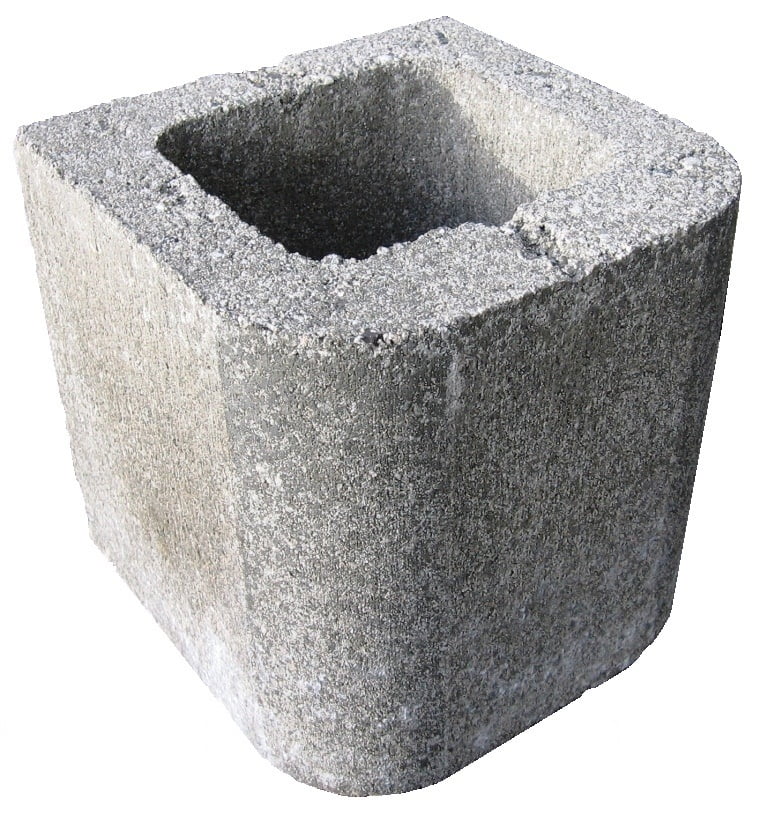

08 HDBN GR |
Double Bullnose, Half |
Gray |
8″ x 8″ x 8″ |
21 lbs |
150 |
 |

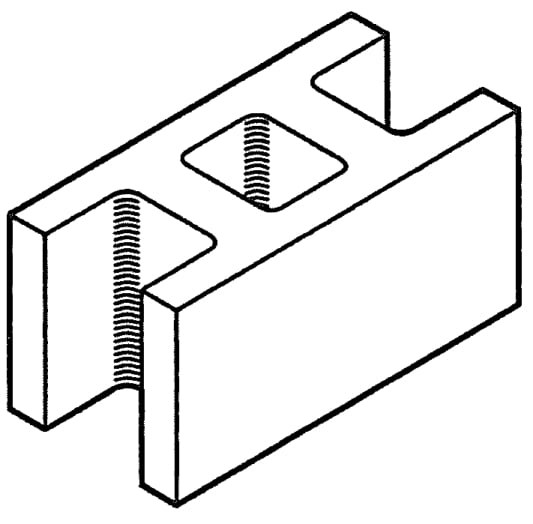

08 OPEN GR |
Open End |
Gray |
8″ x 8″ x 16″ |
37 lbs |
75 |
 |

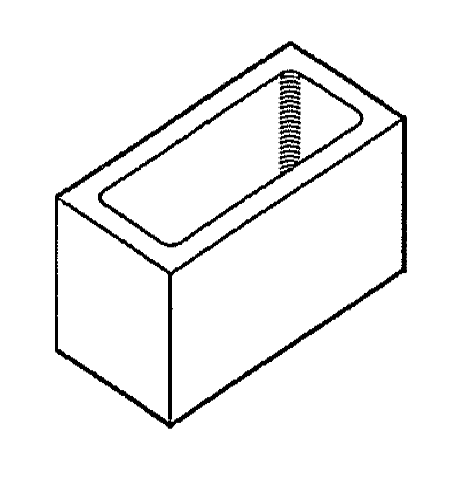

08 GUTN GR |
Gutless |
Gray |
8″ x 8″ x 16″ |
34 lbs |
75 |
 |

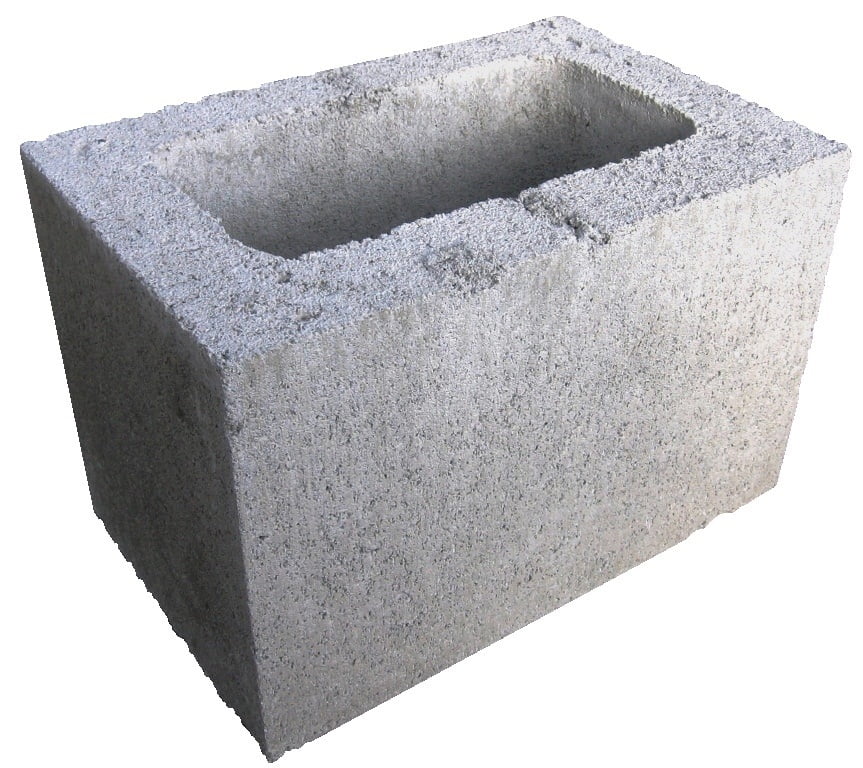

08 TQGN GR |
Gutless, Three-Quarter Block |
Gray |
8″ x 8″ x 12″ |
33 lbs |
100 |
 |
08 FFCN GR |
Gutless, 45 degree Corner |
Gray |
8″ x 8″ x 12″ |
28 lbs |
75 |
 |

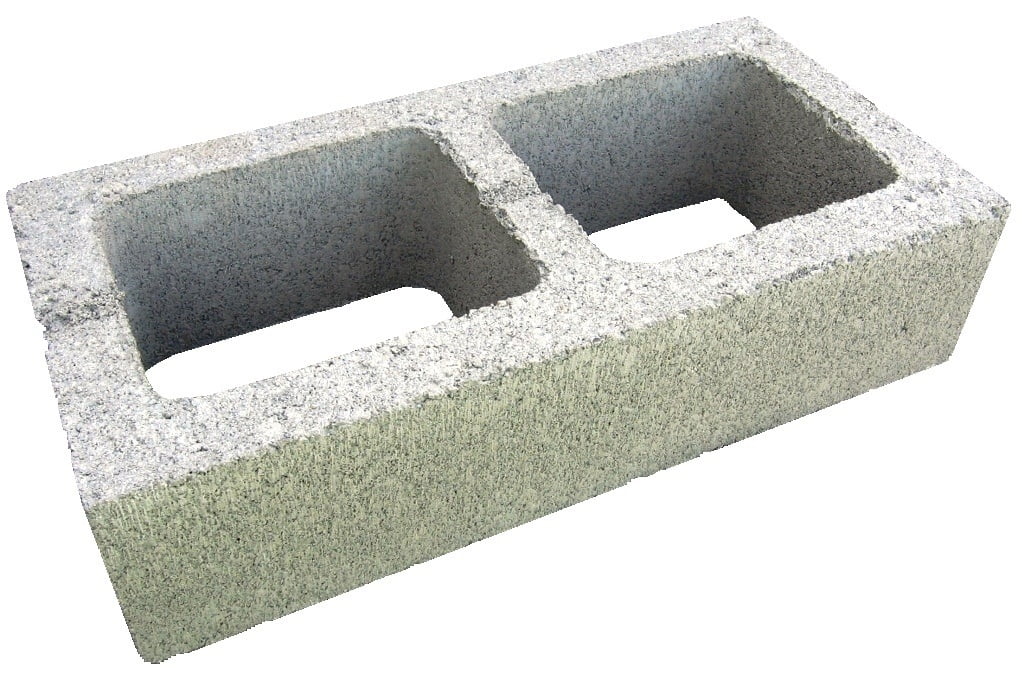

08 HHIN GR |
Standard, Half-High |
Gray |
8″ x 4″ x 16″ |
18 lbs |
150 |
 |

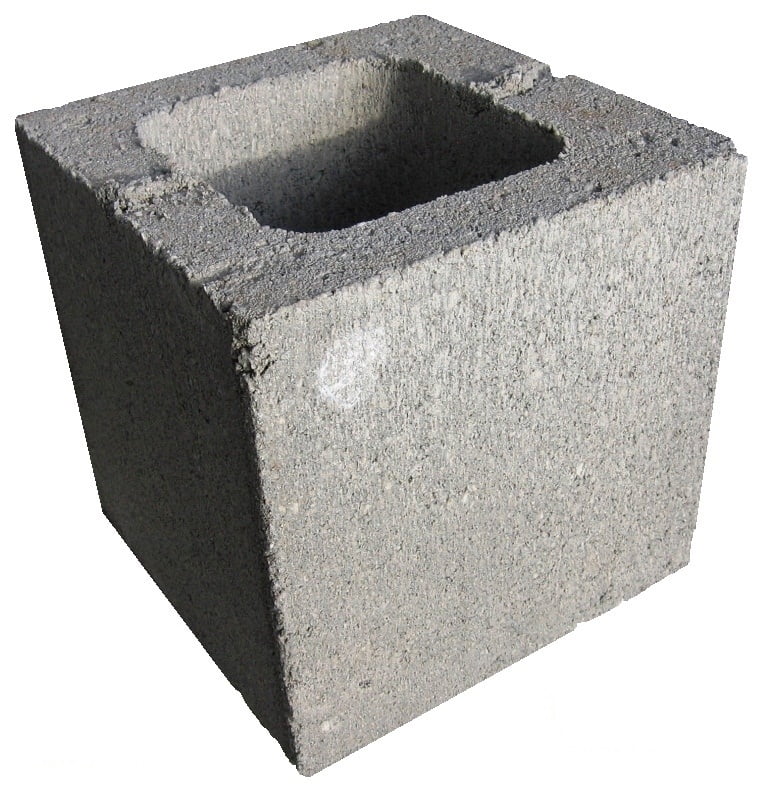

08 HBKN GR |
Half Block |
Gray |
8″ x 8″ x 8″ |
22 lbs |
150 |
![Block 8", Half Block, Half-High [Drawing]](https://www.anchsand.com/wp-content/uploads/2018/07/Com8HalfhalfhighDraw-150x124.jpg) |

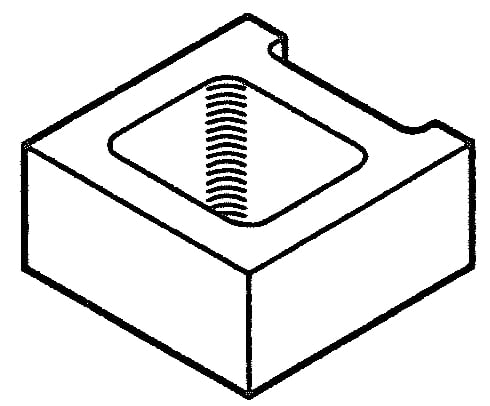

08 HHHN GR |
Half Block, Half-High |
Gray |
8″ x 4″ x 8″ |
10 lbs |
300 |
|
08 THHN GR |
Three-Quarter Block, Half-High |
Gray |
8″ x 4″ x 12″ |
14 lbs |
200 |
 |

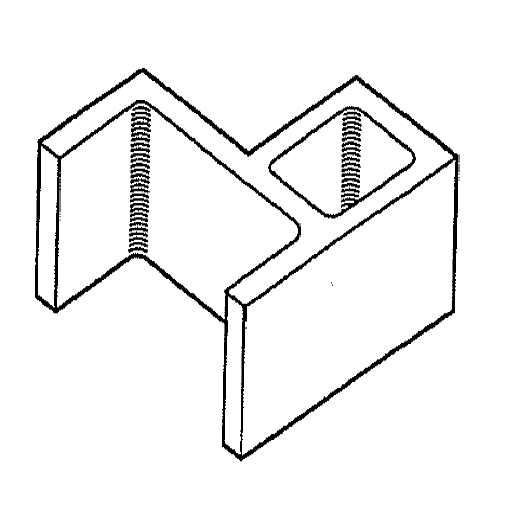

08 HPIN GR |
H-Pilaster |
Gray |
8″ x 8″ x 16″ |
54 lbs |
50 |
|
08 UPIN GR |
U-Pilaster |
Gray |
8″ x 8″ x 16″ |
35 lbs |
75 |
|
08 ABKN GR |
A Block |
Gray |
8″ x 8″ x 16″ |
45 lbs |
75 |
|
08 LTLN GR |
Lintel |
Gray |
8″ x 8″ x 16″ |
48 lbs |
75 |

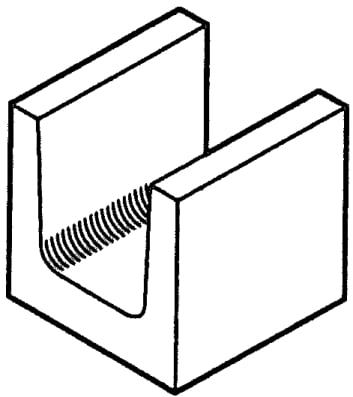

![Block 8", Lintel, Half Block [Drawing]](https://www.anchsand.com/wp-content/uploads/2018/07/com8lintelhalfdraw-133x150.jpg) |
08 HLTN GR |
Lintel, Half Block |
Gray |
8″ x 8″ x 8″ |
20 lbs |
195 |
