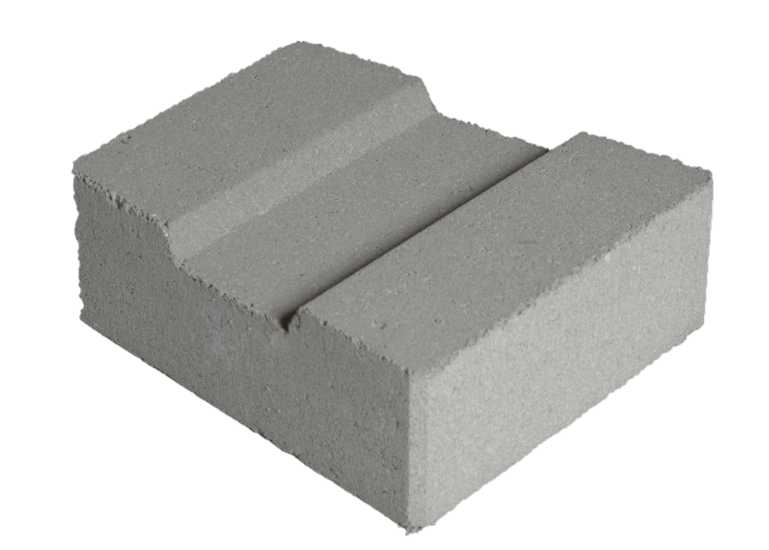

Courtyard Wallcap Upside Down - Gray
Courtyard Postcap - Caribou Buff
Courtyard Postcap - Gray
Home Masonry, Block & Stone Landscape & Retaining Walls Allan Block Courtyard Landscape Wall
Flowable Fill - Glenn Hwy Repair
Concrete Flowable Fill
Back to products
AB Wall
Allan Block Retaining Wall Collection

Allan Block Courtyard Landscape Wall


The Allan Block Courtyard Collection’s unique design allows you to build a variety of projects using five basic pieces.
Bring your designs to life with serpentine curves, straight walls and decorative posts – all with one simple system.

Photo Product Number Description Color Dimensions (WxHxL) Weight No./ Pallet

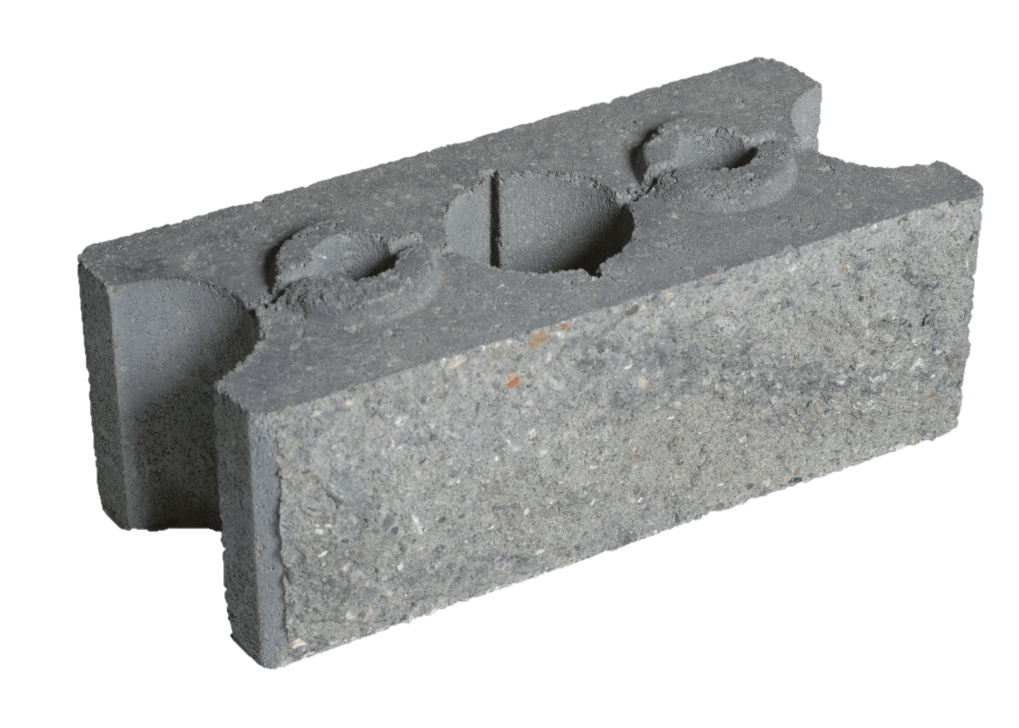

Courtyard Dublin - Raven Black ABCYD GRRB Dublin Full Block Gray/ Raven Black 7″ x 6″ x 16.5″ 42 lbs 60

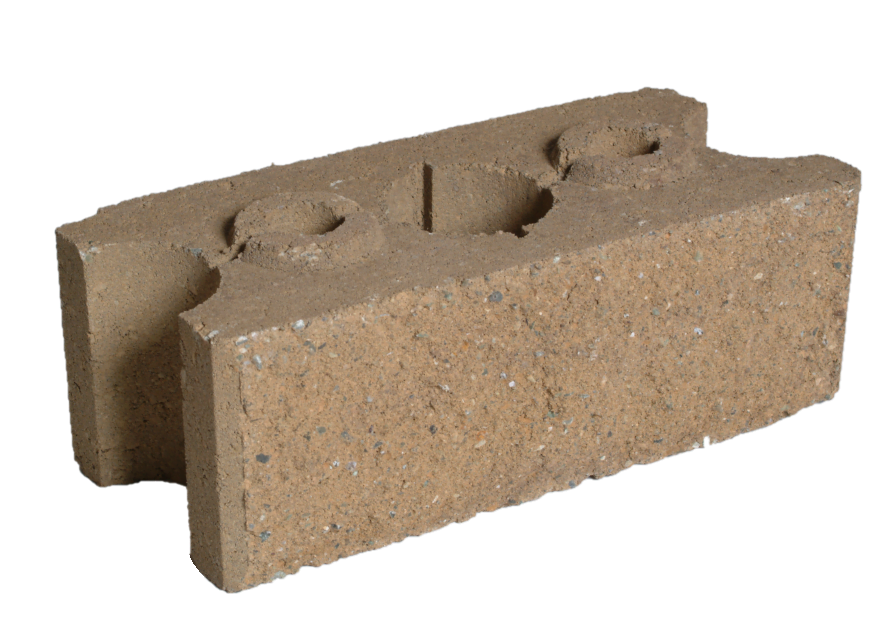

Courtyard Dublin - Caribou Buff ABCYD CB Dublin Full Block Caribou Buff 7″ x 6″ x 16.5″ 42 lbs 60
ABCYD GR Dublin Full Block Gray 7″ x 6″ x 16.5″ 42 lbs 60

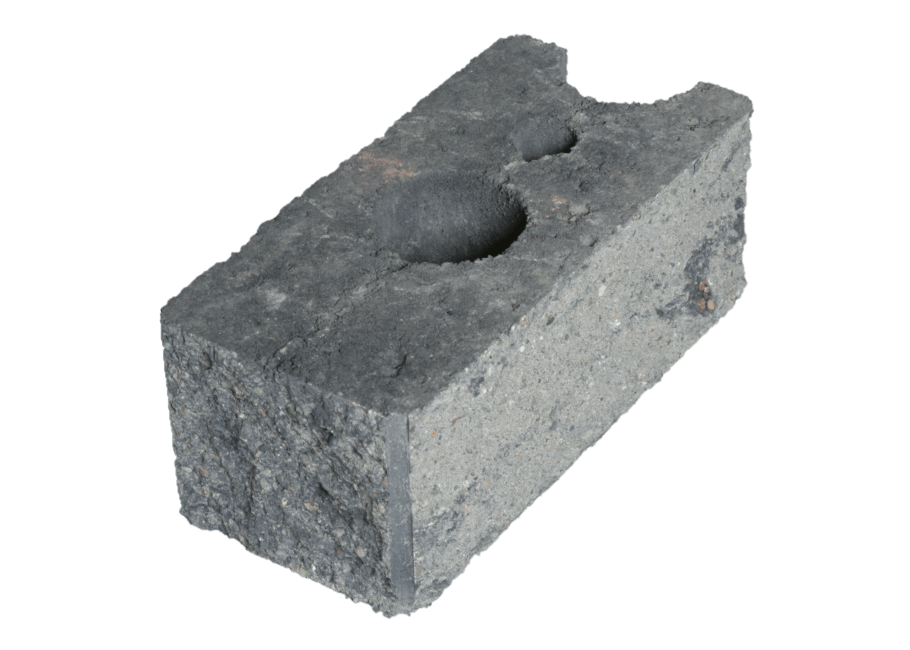

Courtyard Dublin - Gray ABCY CRN GRRB Corner Gray/ Raven Black 7″ x 6″ x 15.5″ 44 lbs 75

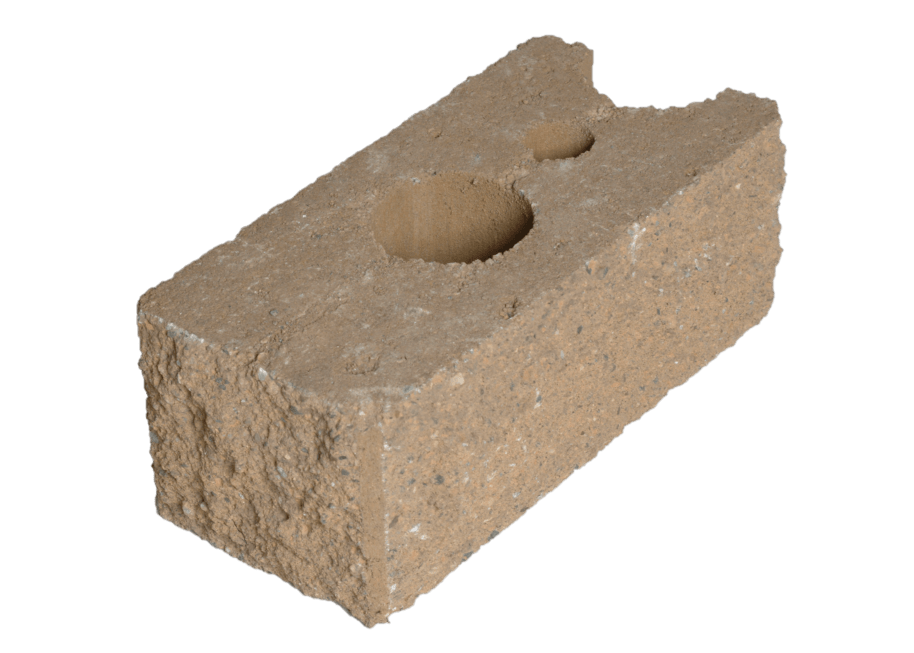

Courtyard Corner - Caribou Buff ABCY CRN CB Corner Caribou Buff 7″ x 6″ x 15.5″ 44 lbs 75
ABCY CRN GR Corner Gray 7″ x 6″ x 15.5″ 44 lbs 75
Courtyard York - Raven Black ABCYY GRRB York Half Block Gray/ Raven Black 7″ x 6″ x 9″ 20 lbs 90

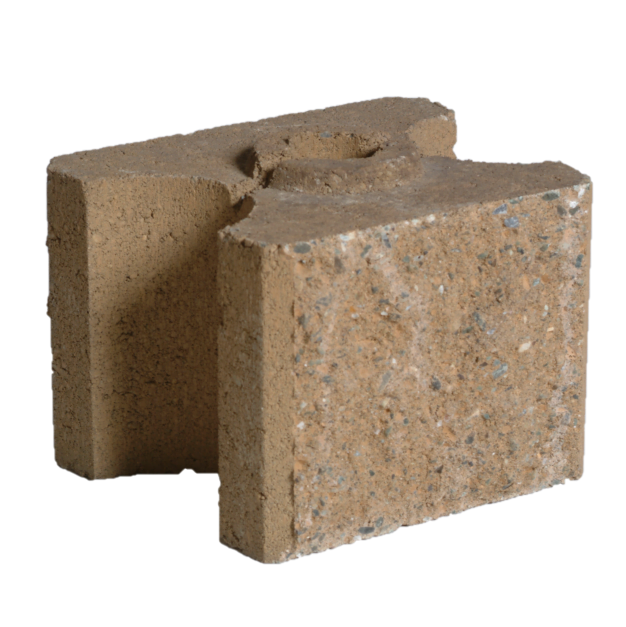

Courtyard York - Caribou Buff ABCYY CB York Half Block Caribou Buff 7″ x 6″ x 9″ 20 lbs 90
ABCYY GR York Half Block Gray 7″ x 6″ x 9″ 20 lbs 90

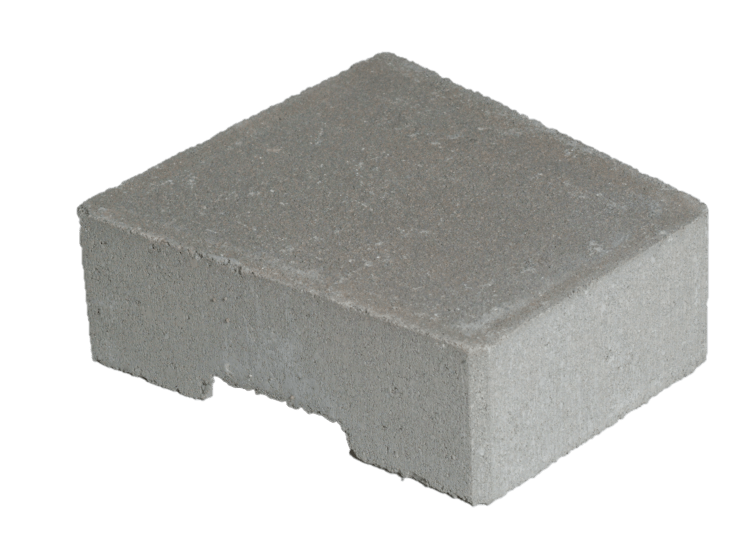

Courtyard Wallcap - Gray ABCY WCGR Wall Cap Gray 10″ x 3.5″ x 7″/9.25″ 24 lbs 120

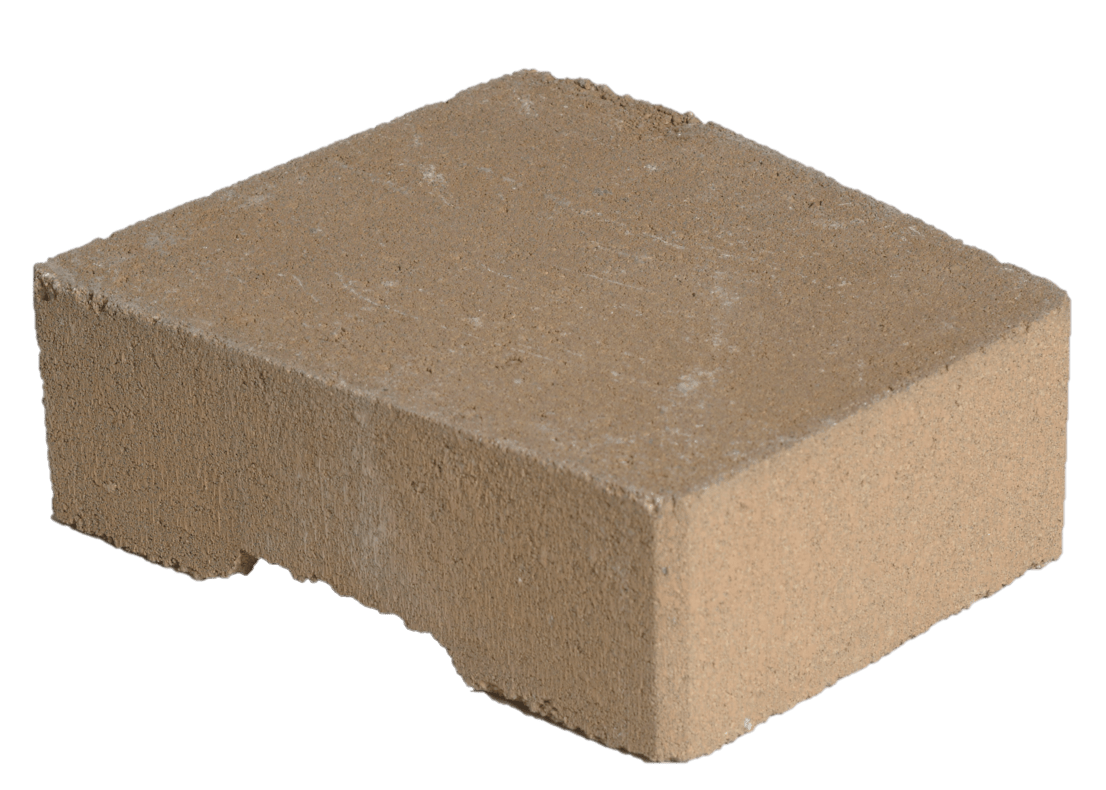

Courtyard Wallcap - Caribou Buff ABCY WCCB Wall Cap Caribou Buff 10″ x 3.5″ x 7″/9.25″ 24 lbs 120

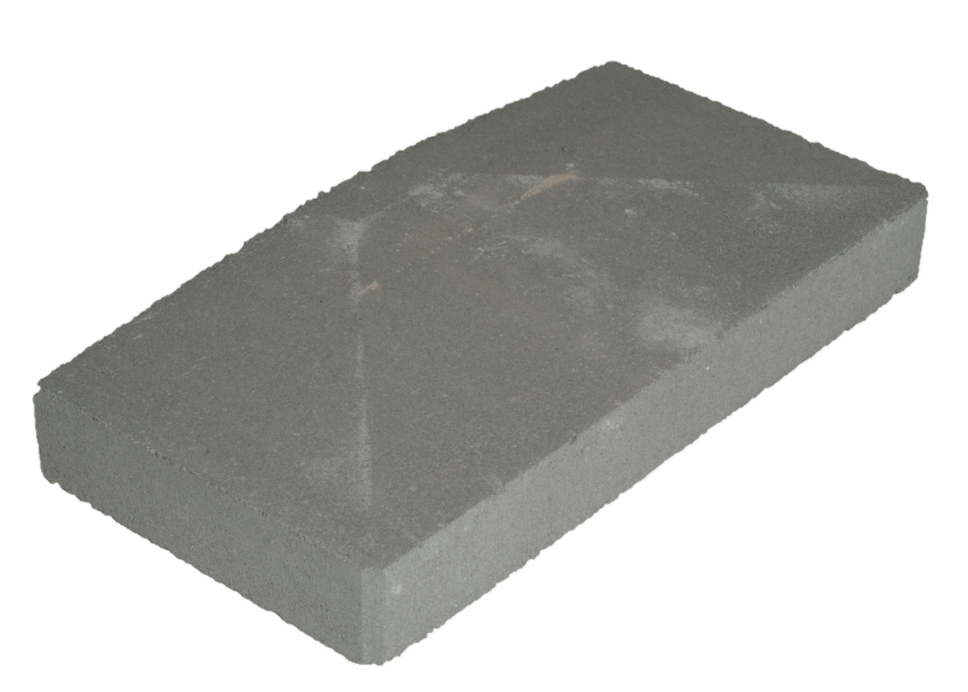

Courtyard Postcap - Gray ABCY PCGR Post Cap Gray 12″ x 3″ x 24″ 74 lbs 36

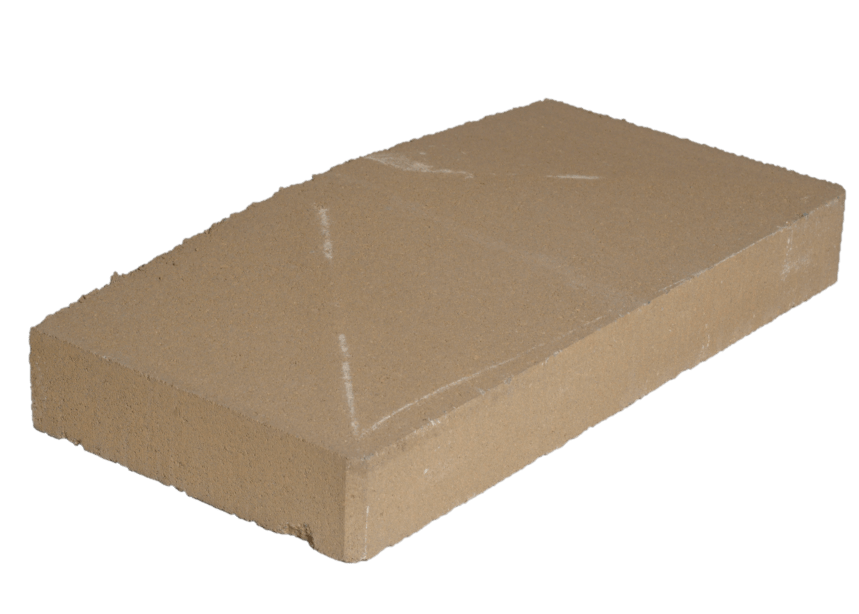

Courtyard Postcap - Caribou Buff ABCY PCCB Post Cap Caribou Buff 12″ x 3″ x 24″ 74 lbs 36
Add to wishlist
  • Description
Description

Create outdoor spaces that are comfortable yet elegant for entertaining:

Courtyard - Idea Book
Courtyard - Installation
Courtyard - Flyer

Courtyard - Square Fire Pit
Courtyard - Round Fire Pit
Courtyard - Kitchen with Side Burners
Courtyard - Grilling Station
Courtyard - Gas Kitchen
Courtyard - Couch
Courtyard - Below Ground Pond
Courtyard - Above Ground Pond

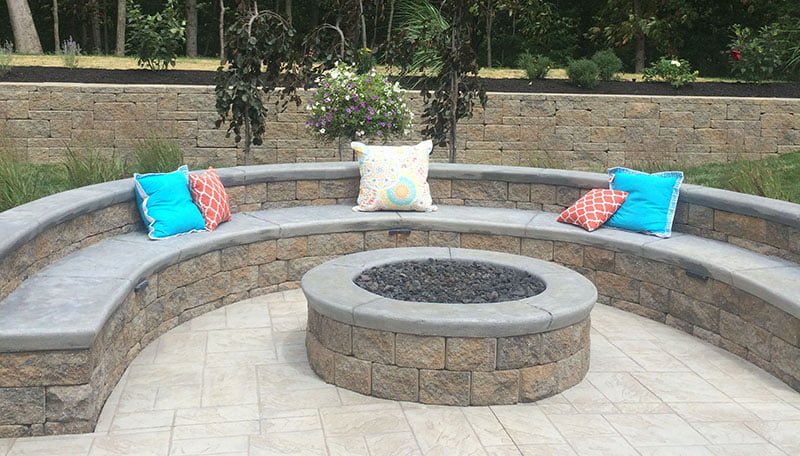

Courtyard - Firepit

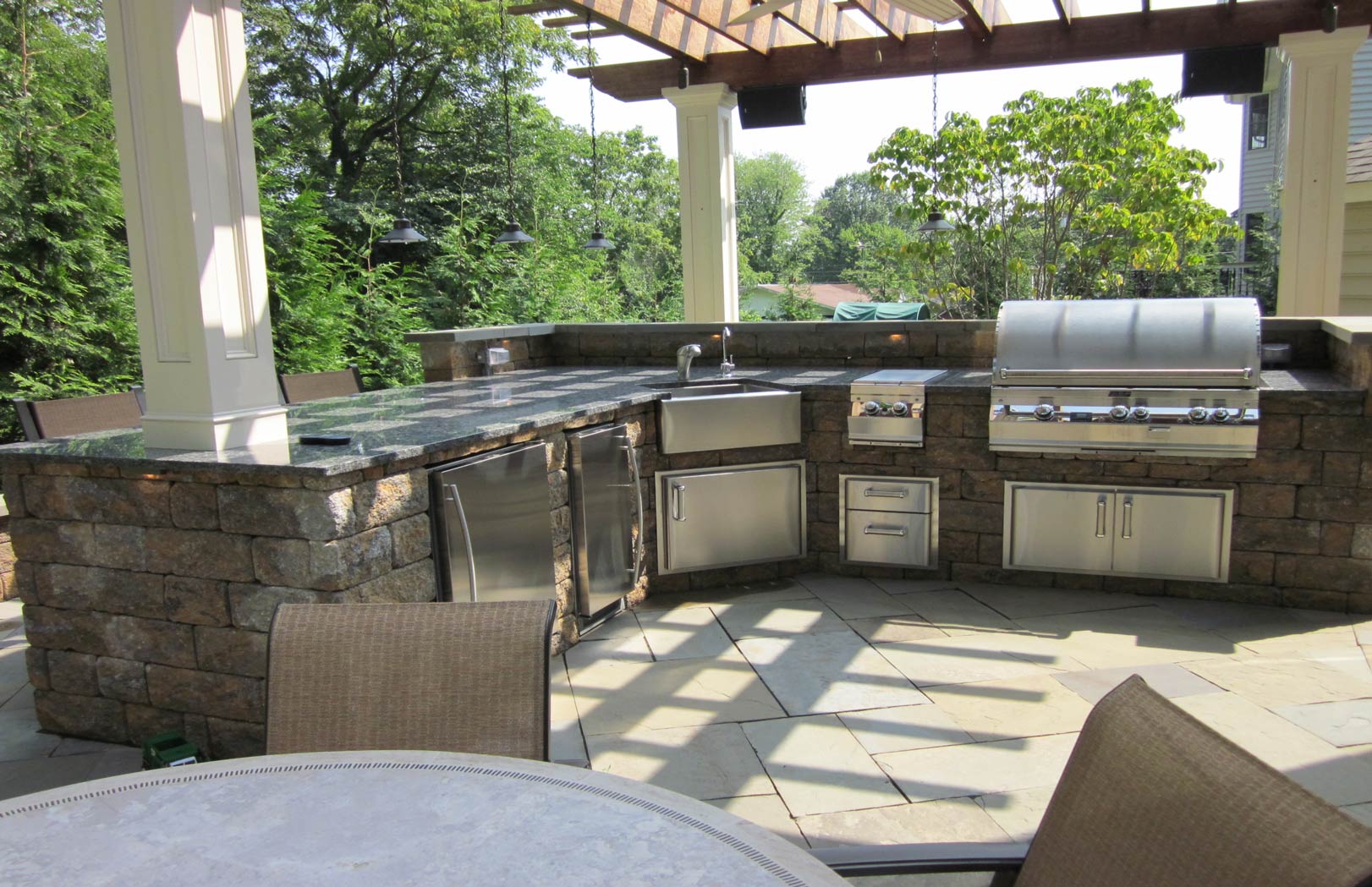

Courtyard - Outdoor Kitchen

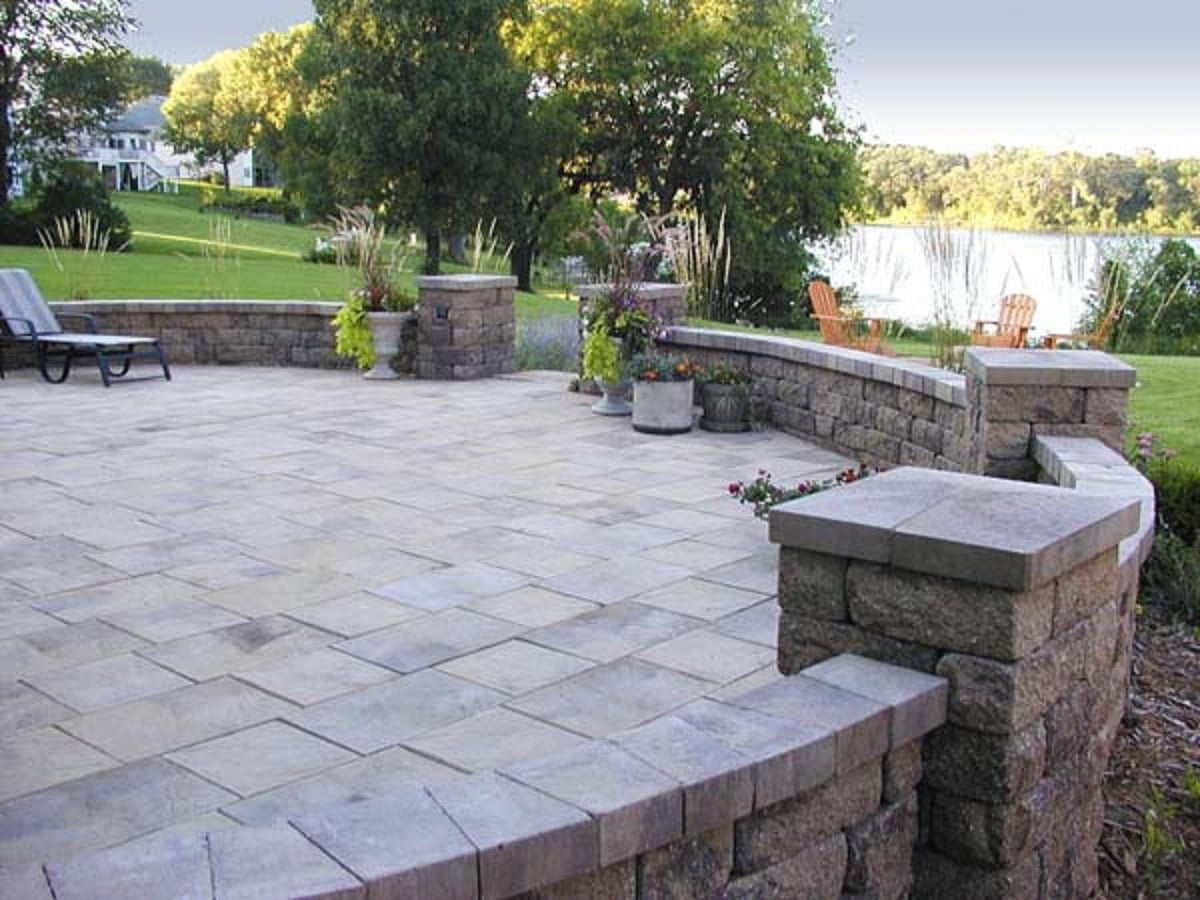

Courtyard - Patio Wall
Courtyard Patio Wall
Courtyard Patio Wall

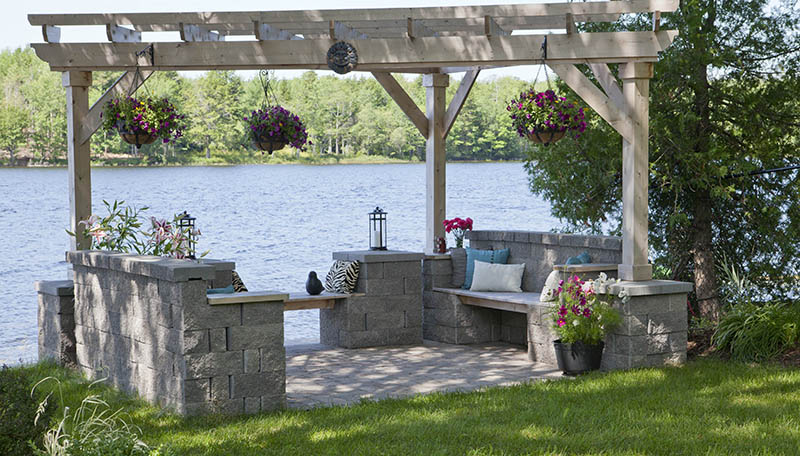

Courtyard - Pergola

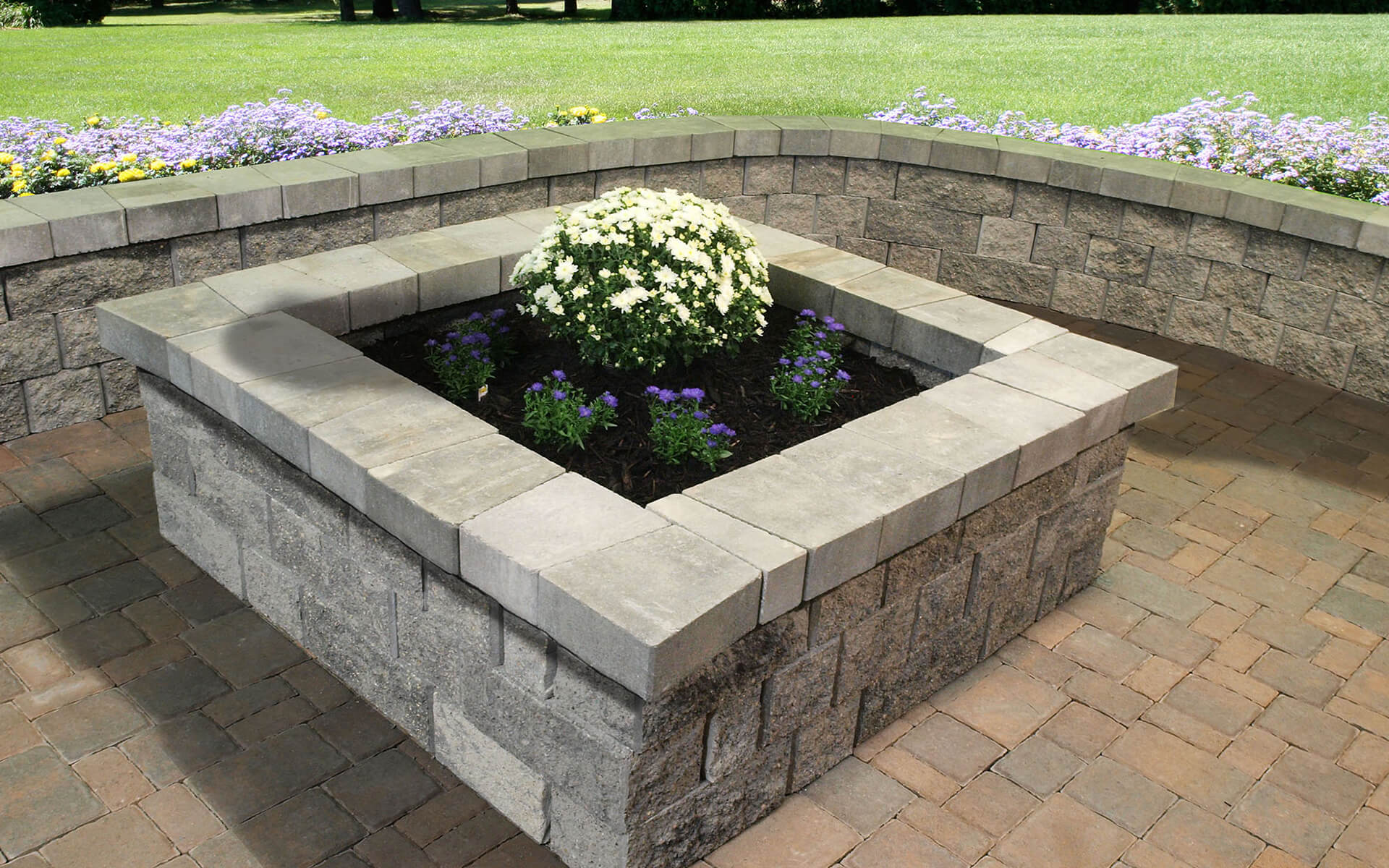

Courtyard - Planter

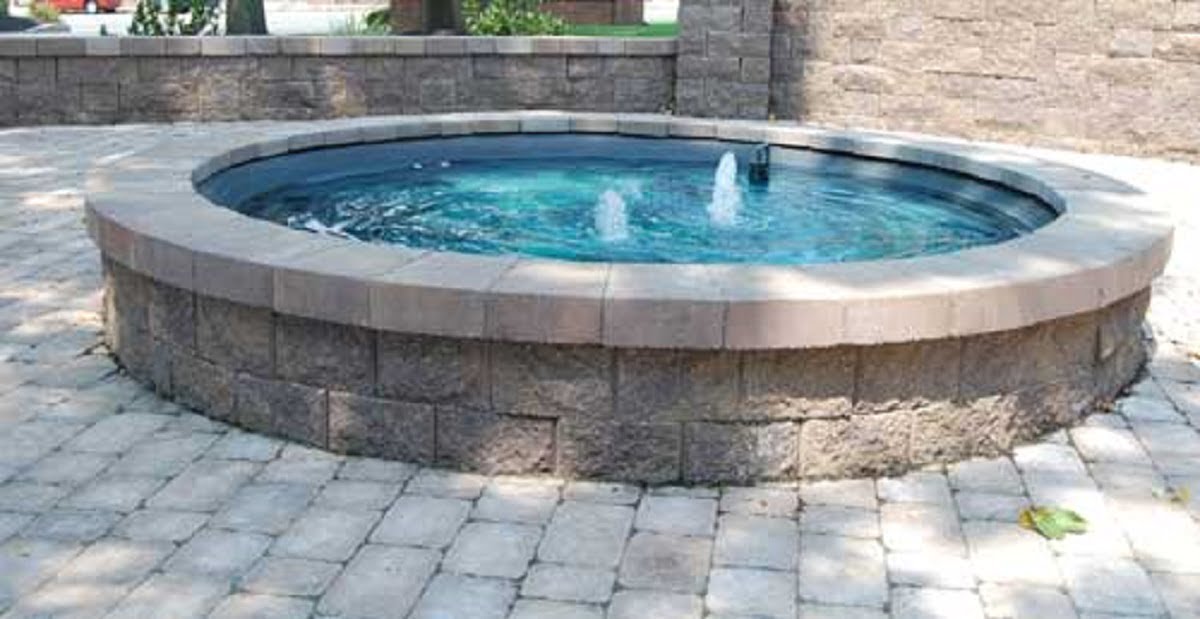

Courtyard - Pond

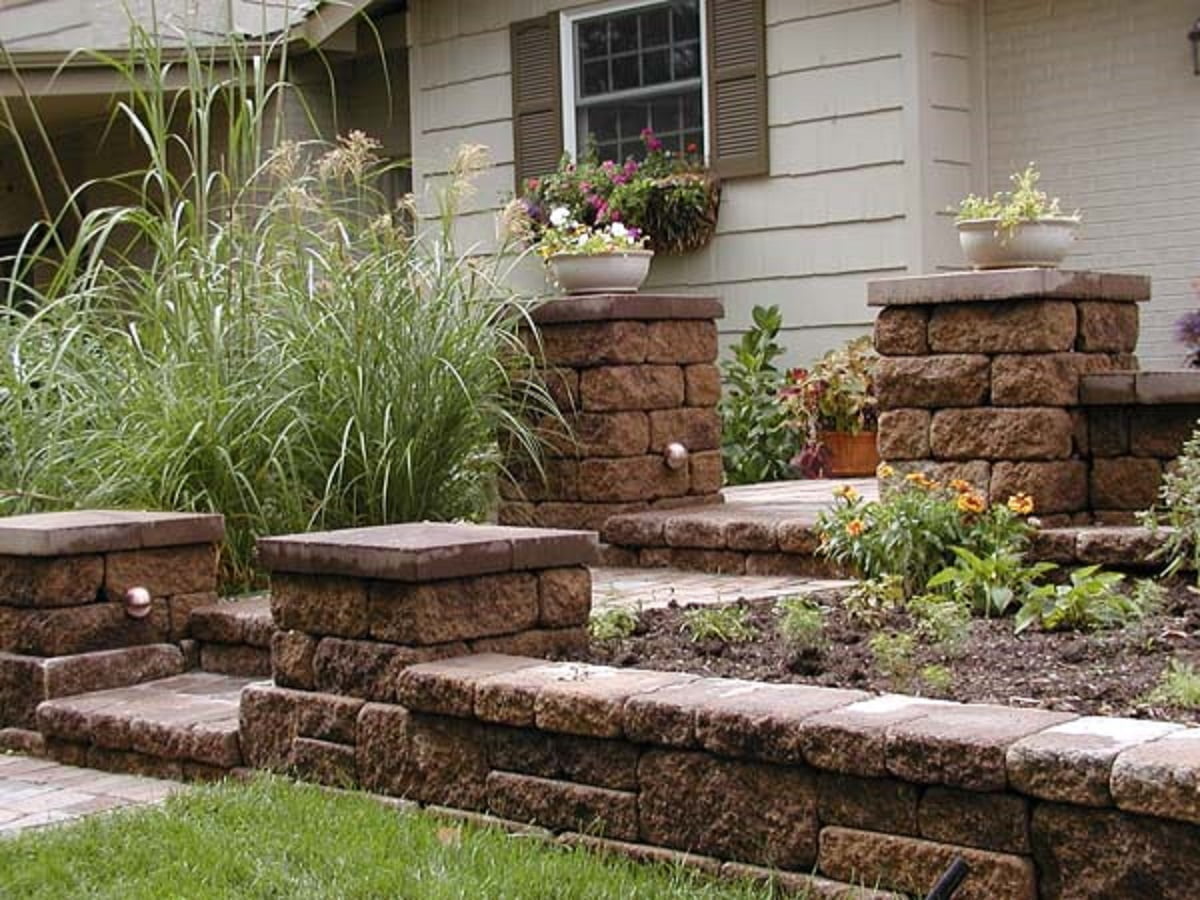

Courtyard - Raised Planters

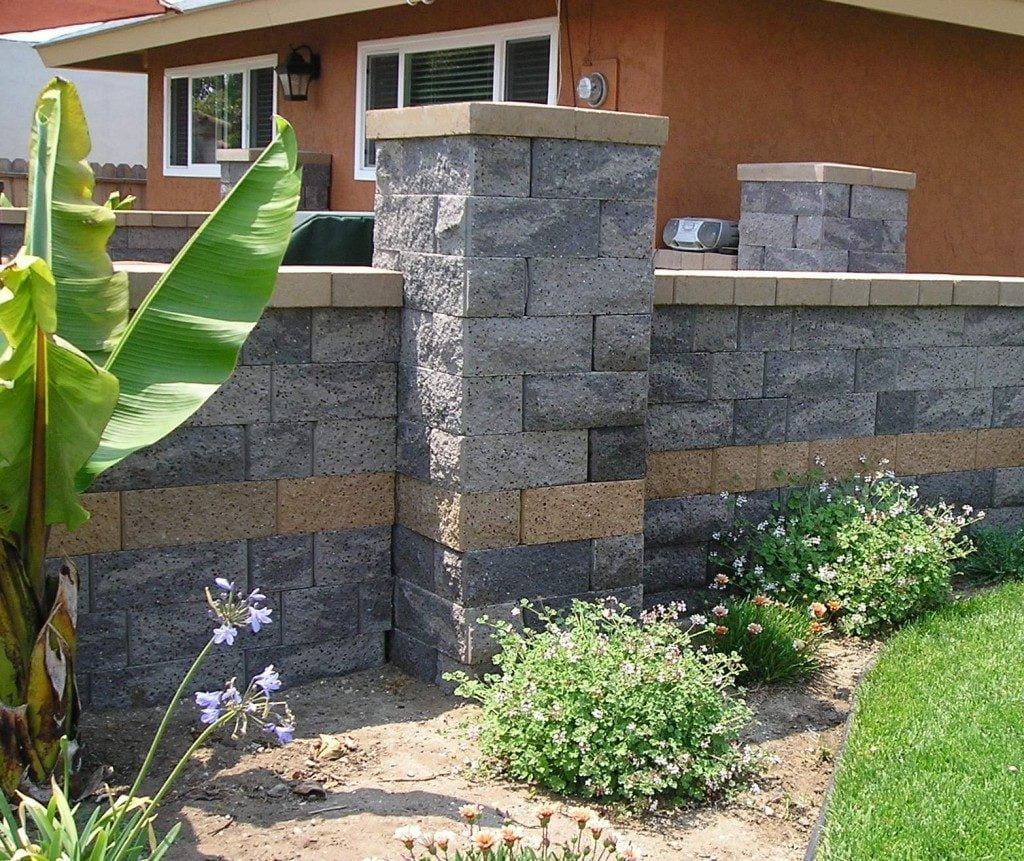

Courtyard - Wall+Post

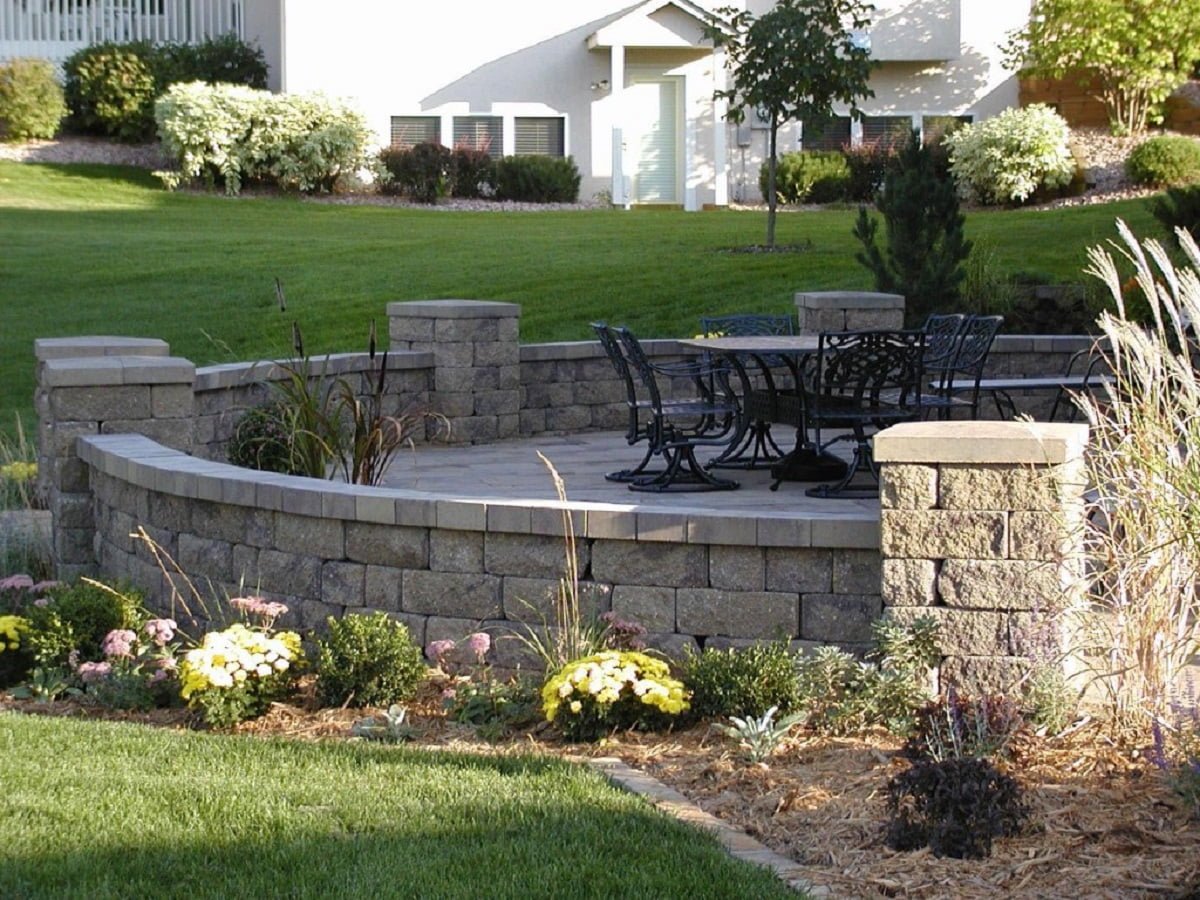

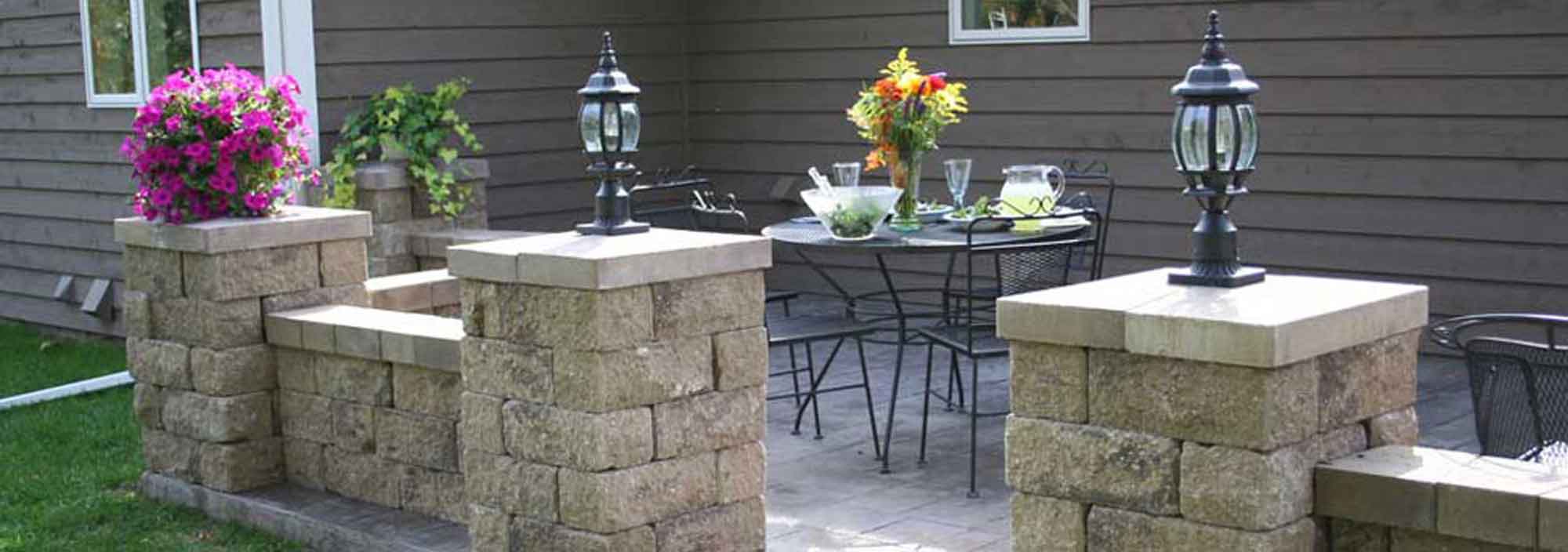

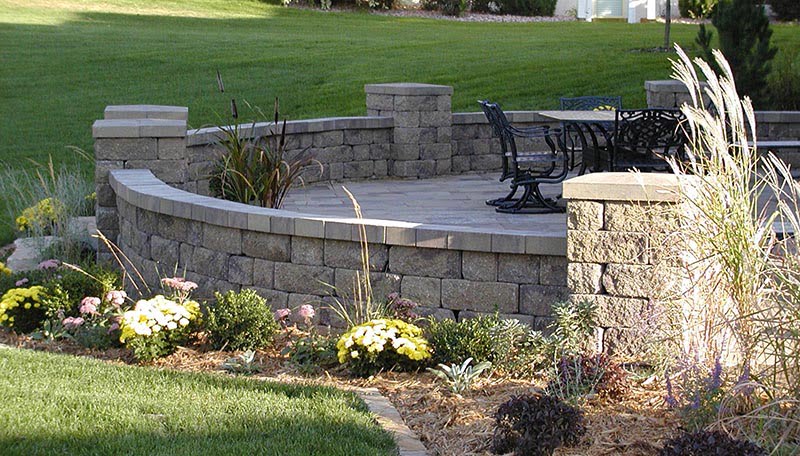

Courtyard- Patio

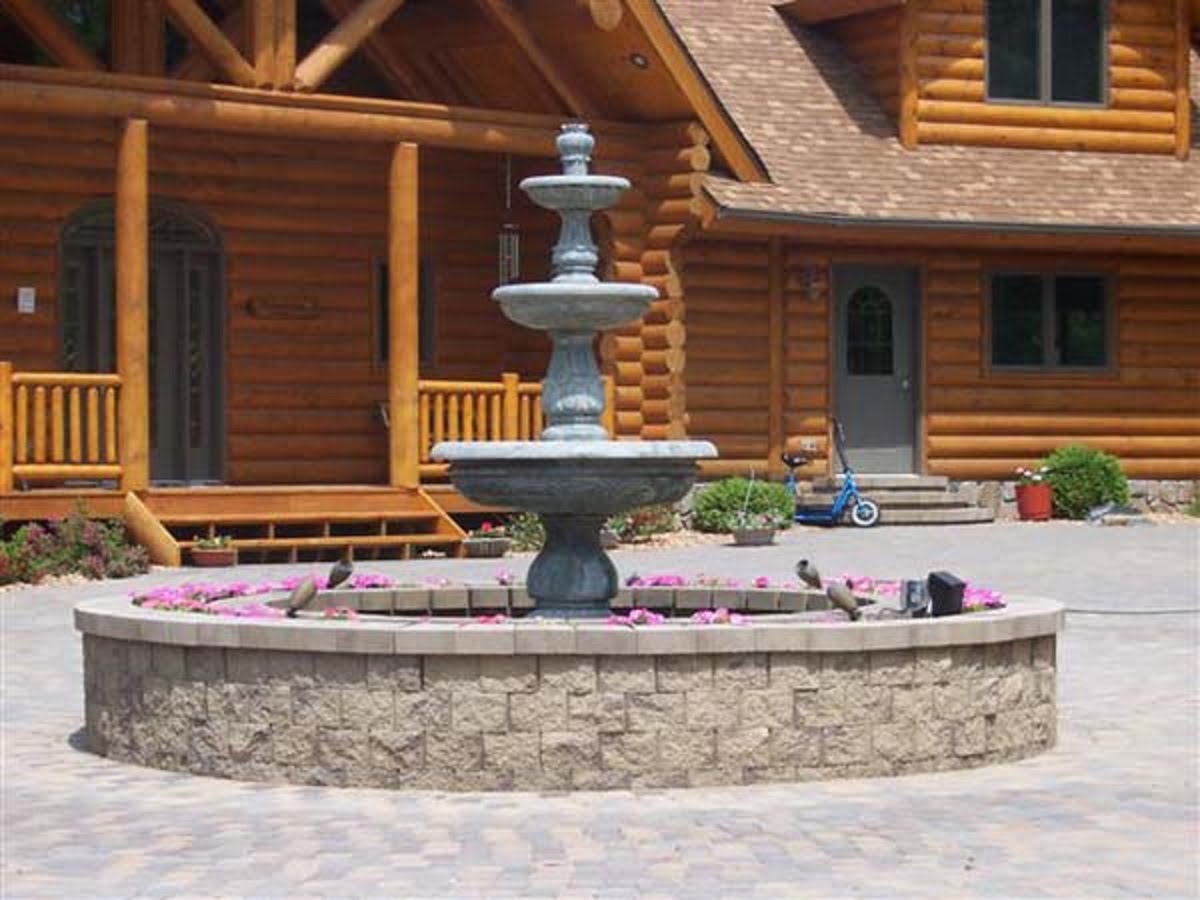

Courtyard-Fountain

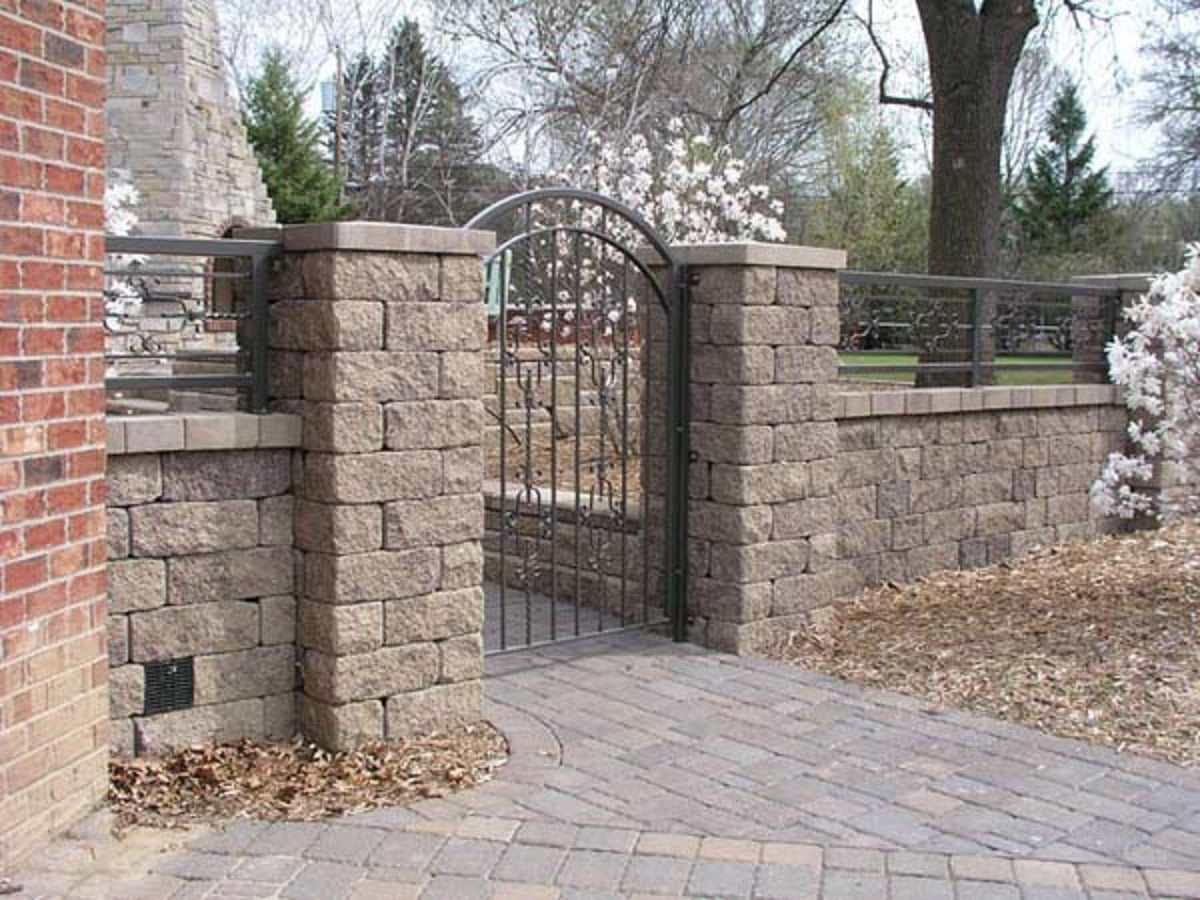

Courtyard - Entry

For estimating more detailed projects with a combination of block sizes, curved and straight walls, see our representative or visit www.allanblock.com for the Courtyard estimating tool.

Number of DUBLIN Blocks Needed for Walls
Approximate Wall Height

Wall Length

4 ft
(1.2 m)
5 ft
(1.5 m)
8 ft
(2.4 m)
12 ft
(3.7 m)
20 ft
(6.1 m)
1 course 6 in 150 mm 3 4 6 9 15
2 courses 12 in 305 mm 6 8 12 18 30
3 courses 18 in 460 mm 9 12 18 27 45
4 courses 24 in 610 mm 12 16 24 36 60
5 courses 30 in 760 mm 15 20 30 45 75
Wall Caps Needed 6 8 12 18 30
For wall panels using YORK blocks, just double the numbers above.
Number of CORNER Blocks Needed for Posts
Approximate Wall Height

Number of Posts

1 2 3 4 5
2 courses 12 in 305 mm 8 16 24 32 40
3 courses 18 in 460 mm 12 24 36 48 60
4 courses 24 in 610 mm 16 32 48 64 80
5 courses 30 in 760 mm 20 40 60 80 100
6 courses 36 in 915 mm 24 48 72 96 120
Post Caps Needed 2 4 6 8 10

RESTOCKING CHARGE:

A restocking charge of 20% is applied to all returned block, except special order block where no returns are allowed.
